limited edition

20′ WILDTRAX REAR DOOR

Enquire Now
Download Brochure

About this model

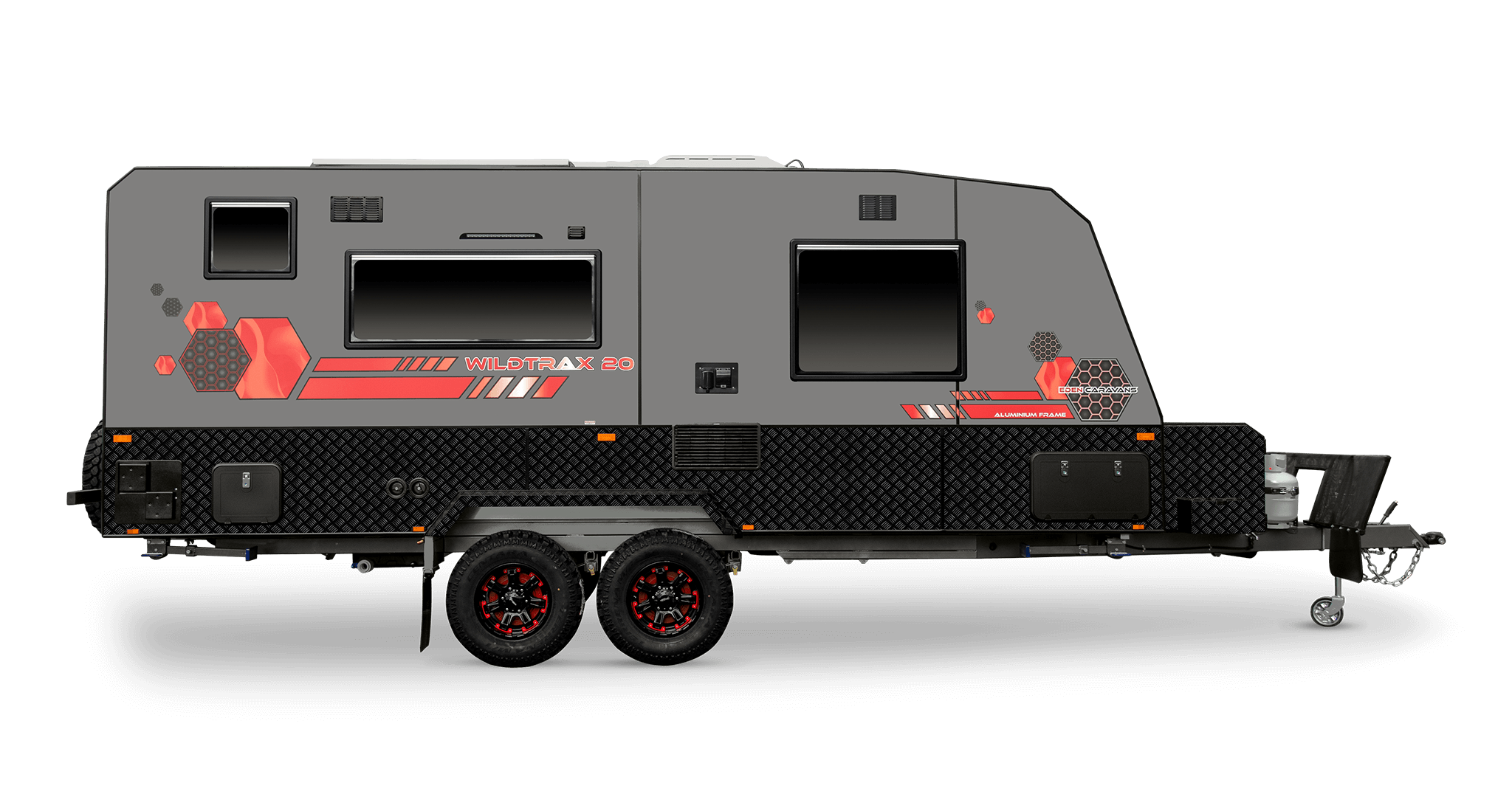

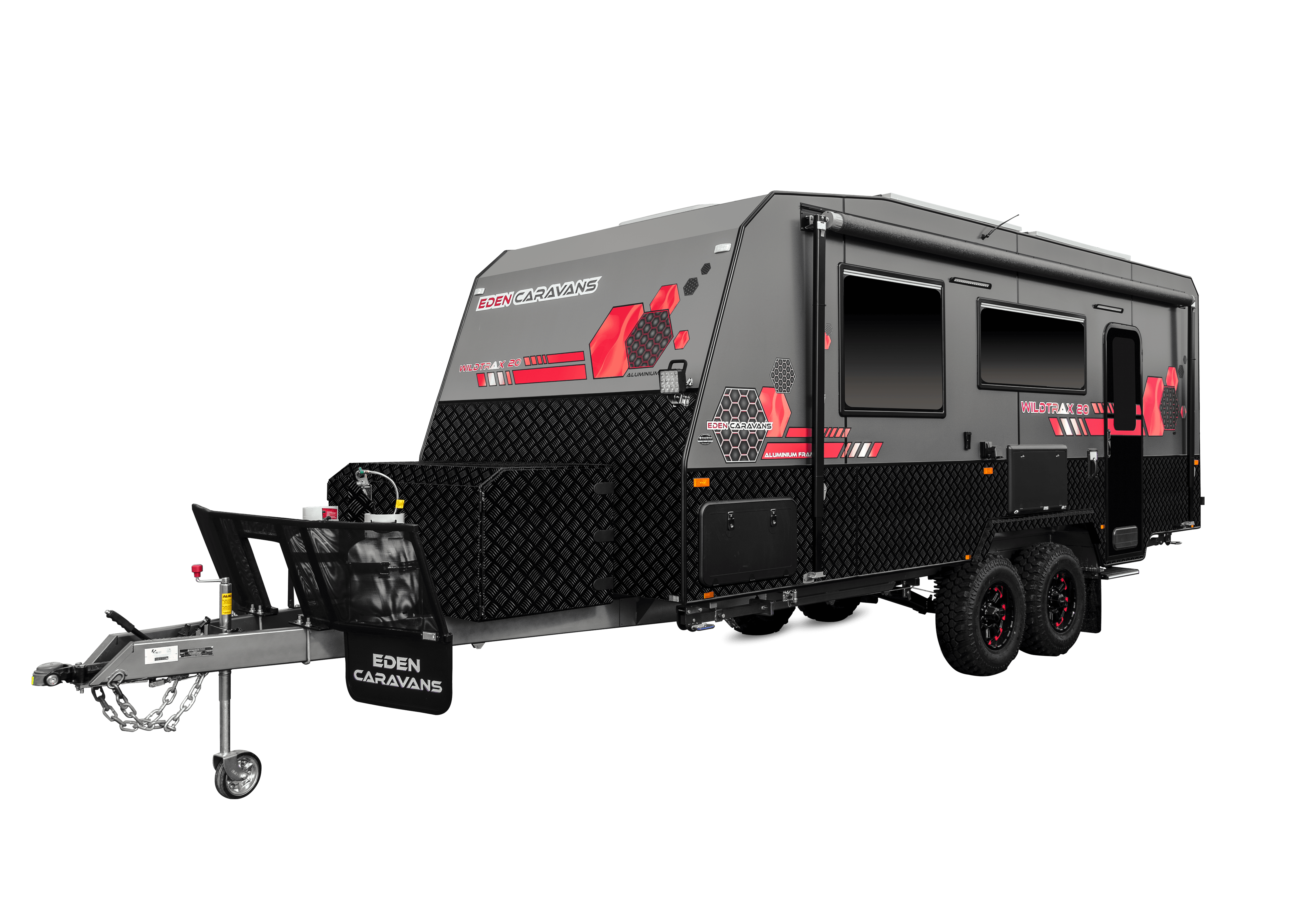

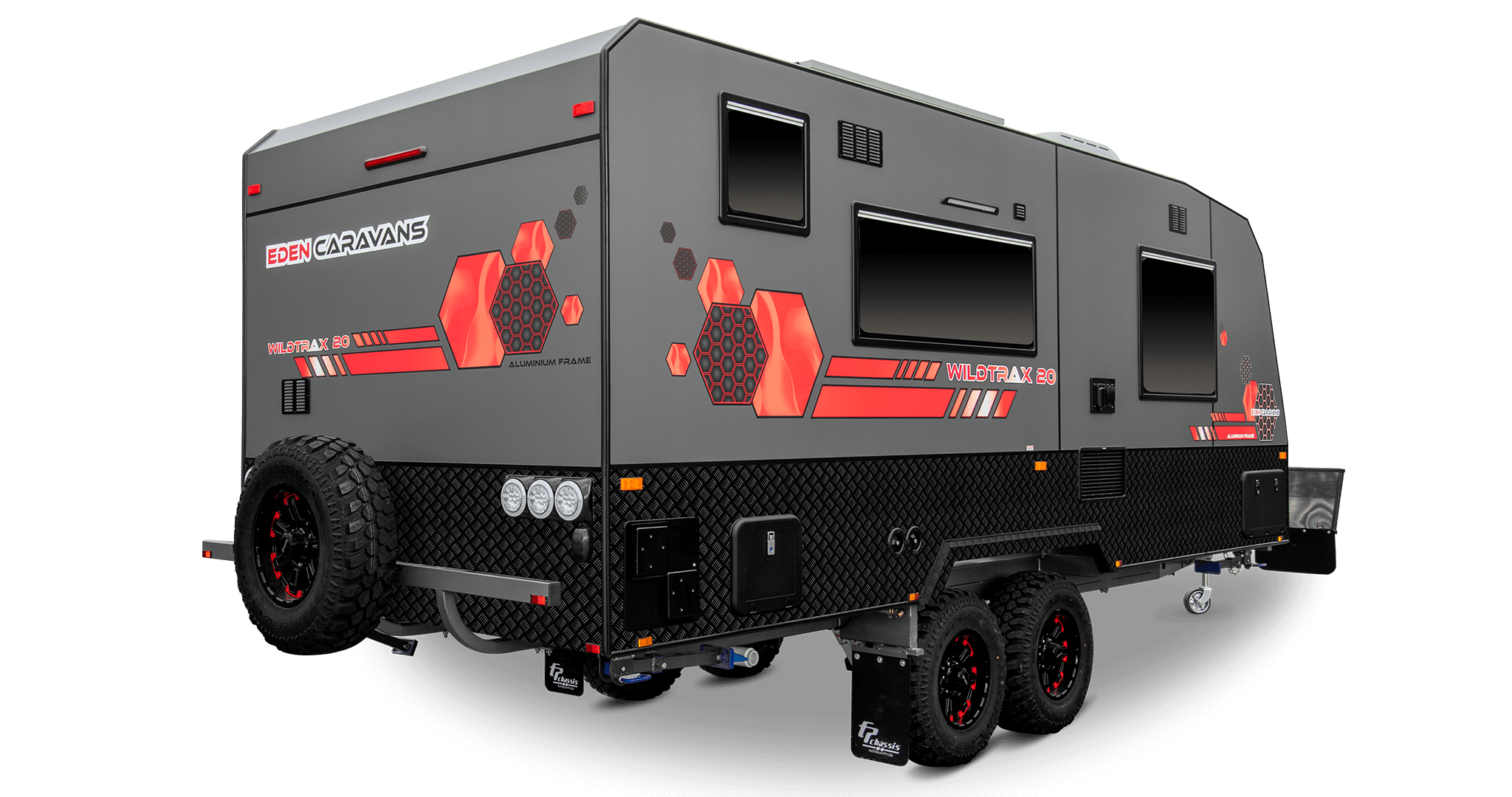

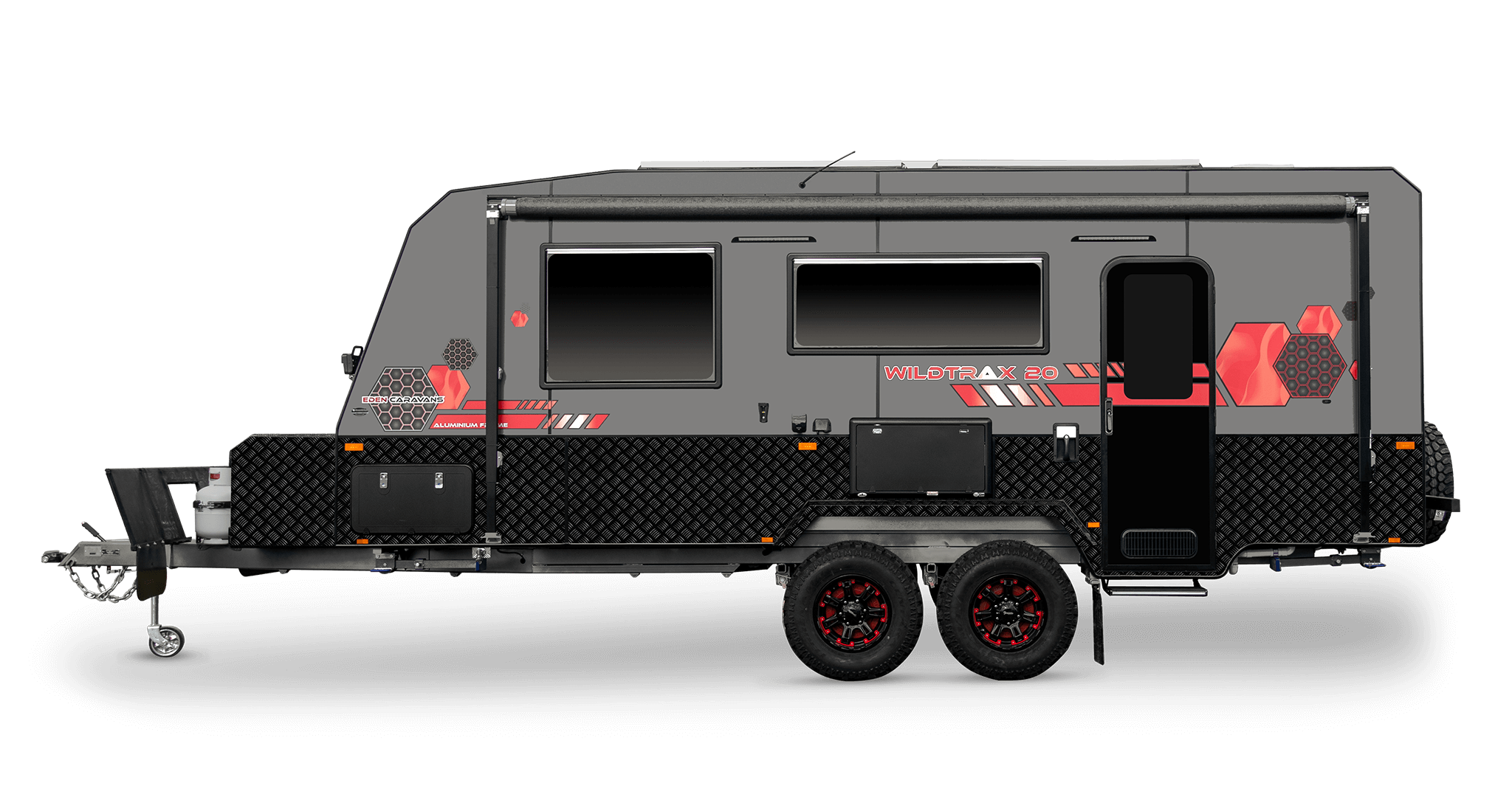

20′ WILDTRAX REAR DOOR Exterior20′ WILDTRAX REAR DOOR Exterior20′ WILDTRAX REAR DOOR Exterior20′ WILDTRAX REAR DOOR Exterior20′ WILDTRAX REAR DOOR Exterior
Exterior Gallery Prev ArrowExterior Gallery Next Arrow
WATER STORAGE
N/A
BATTERY CAPACITY
1x 200 Amp Lithium Battery
SOLAR
510w Solar = 3 x 170w Panels
INVERTER
N/A

Interior Images

20′ WILDTRAX REAR DOOR Interior Placeholder20′ WILDTRAX REAR DOOR Interior Placeholder20′ WILDTRAX REAR DOOR Interior Placeholder20′ WILDTRAX REAR DOOR Interior Placeholder20′ WILDTRAX REAR DOOR Interior Placeholder
20′ WILDTRAX REAR DOOR Interior Placeholder Thumb20′ WILDTRAX REAR DOOR Interior Placeholder Thumb20′ WILDTRAX REAR DOOR Interior Placeholder Thumb20′ WILDTRAX REAR DOOR Interior Placeholder Thumb20′ WILDTRAX REAR DOOR Interior Placeholder Thumb
Interior Gallery Prev ArrowInterior Gallery Next Arrow
1/ 1

Discover More About This Caravan

Take a closer look at this caravan’s layout, features, specifications, and key inclusions. Request the brochure to explore everything this model has to offer and see how it could suit your next adventure.

Request A Brochure

FLOORPLAN

This clever Wildtrax layout gives you a private front bedroom, central kitchen and café dinette, so you can cook, dine and relax without feeling cramped. A full rear ensuite with separate shower and toilet adds home-style comfort on the road, while the open walkway keeps everything easy to access.

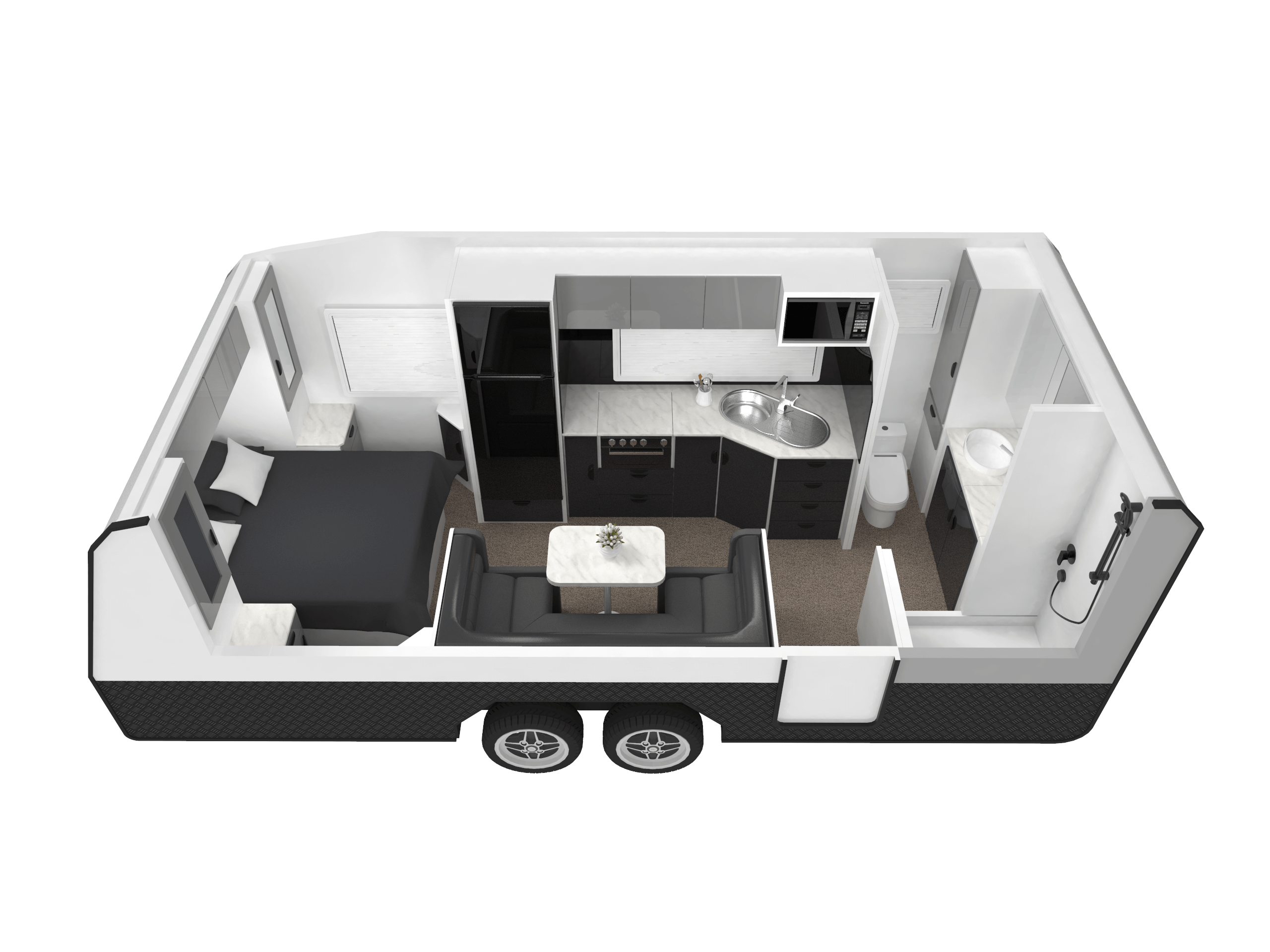

Floorplan of Eden Caravans Wildtrax showing front bedroom with double bed, central L-shaped dinette opposite kitchen with sink and stove, and rear bathroom with toilet, vanity and separate shower

Enquire on this Layout
Floorplan of Eden Caravans Wildtrax showing front bedroom with double bed, central L-shaped dinette opposite kitchen with sink and stove, and rear bathroom with toilet, vanity and separate shower

Speak with the Builder

Discover the freedom of the open road with Eden Caravans. Our caravans are built for adventure, with a focus on quality, comfort, and durability. Explore the hidden gems of the countryside, create lasting memories with loved ones, and experience the ultimate in caravan travel. With Eden Caravans, your journey begins here. Our expert builders are ready to guide you through every step, ensuring your caravan is perfectly tailored to your adventures.
Book Now

Full Specifications

Chassis External Internal Plumbing Appliances Electrical
Chassis

Chassis

  • Extended 'A' Frame for Toolbox
  • Heavy-Duty Rear Galvanise 3 Arm Bumper
  • Jockey Wheel
  • Mud Flaps
  • Aluminum pull out step
  • Off-Road 3700kg Cruisemaster XT Independent Suspension
  • 2 X 9KG Gas bottles With Twin Regulator
  • D035 With integrated handbrake
  • 12” inch Electric Drum Breaks
  • 12 Pin plus
  • "4" Chassis x "4" Riser
  • Heavy duty rear bar
  • 2 x Recovery points
  • 3.5T
  • 2 x Rear skid plates
  • Drop down stabiliser legs
  • Stone guard
  • 265/75R16 Tracmax AT
  • Extra Large Toolbox with slide out Gen and BBQ trays and Jerry can holder
  • Trail Safe System
External

External

  • Large awning to fit
  • Black Flat plate checker sides
  • Camec tripple lock entry door
  • 2 X Awning lights Door Side 1 X On Road Side ( 3 X 500MM )
  • Full insultation
  • Aluminium fold down picnic table
  • 2 x Ranger Hatches With LED Surrounds Internally
  • 1 Spare Wheel Rear Mounted
  • Checker Plate Wheel Spats
  • Double Glazed Windows with Pull Down Mesh Screens & Blackout Blinds To All Windows
  • Eden Wildtrax Vinyl decals
  • Entertainment hatch
  • Interlocking aluminium Henrob riveted wall frames
  • Ranger access hatch doors
  • Eden Premium Wildtrax capping
  • Slime Line Reflectors
  • One piece fiberglass composite roof panel
  • Adjustable Spot Light
  • Eden toolbox BBQ & GEN slide-out ( gen-2 )
Internal

Internal

  • Post Formed Or Square Edge Bench Tops In Solid Ply
  • Fire Extinguisher
  • Magazine Pocket With Upholstery Bed Head
  • 6'2" With Innerspring & Pillow Top Mattress
  • Dual High Density Foam Seating With Lift Up Foot Rest
  • Shaving Cabinet Mirror Doors In Ensuite
  • Metal Frame Draw Runners
  • Dual High Density Foam Seating With Lift Up Foot Rest Large Selection Of Colours & Quality Fabrics
  • Ceramic Vanity Basin
  • Gas Strut Assisted Lift Queen Bed Frame
  • Upholstered Bed Head
  • Pull Down Mesh Screen & Blockout Blinds To All Windows
  • 3 Way interlocking CNC cabinetry throughout
  • Metal Frame Draw Runners
  • Embossed Seat Head Rests
  • Mirrored medicine cabinet Overhead
  • Telecopic table leg (layout dependent)
  • Toilet roll holder
  • 2 x Towel rails
Plumbing

Plumbing

  • 1 x 95ltr Grey Water Tank
  • BBQ Gas Bayonet Outlet
  • 23 Litre Gas/Electric Hot Water Service
  • Fully Moulded Shower To Celling
  • Swivel Toilet Ceramic Inlay
  • 2 x 95ltr Fresh Water with Indicator
  • 2 X 9KG Gas bottles With Twin Regulator
  • Mains pressure inlet
  • Adjustable Shower Head With Mixer
  • 3 way tap
  • Lockable Water Filler Caps
  • water level gauge
  • 12V Water pump
Appliances

Appliances

  • 24" TV With Built In DVD Player On TV Arm
  • Range Hood Recessed (External Vented)
  • Top Load Washing Machine
  • Dometic fresh jet pro
  • Fusion 210
  • Dometic 224L compressor fridge
  • Flatbed microwave
Electrical

Electrical

  • 1x 200 Amp Lithium Battery
  • 2 x Internal speakers
  • 2 x External speakers
  • 12v Sirocco Fan
  • 12-Volt Hatch A With Fan With LED Light In En-Suite And Shower
  • Grab Handle With Light & Step Light
  • Premium LED Down Lights
  • Smoke Detector
  • 510w Solar = 3 x 170w Panels
  • CD/MP3/USB Bluetooth Stereo Player, Double Dim
  • 10A 240V Outlet
  • 15A 240V Inlet
  • 240V power points throughout
  • 50A grey anderson plug - vehicle charger
  • Anti-dazzle annex lights ( 2 x Doorside 1 x roadside )
  • Battery protect 65A
  • Smartshunt
  • Cerbo GX
  • GX Touch 70
  • 1 X 200 AMP B-TECK Lithium Battery
  • High Level Rear Break Lights
  • 40 AMP Enerdrive Charger
  • 40 AMP DC / DC
  • Orion non-islated DC-DC charger 12/12-30
  • 1 x Front work light
  • 1 x Rear work light
  • Multiplus-II 12/3000/120-32 240V
  • LED Downlights throughout
  • Premium LED Dawn Lights
  • LED Strip lights
  • External 240V
  • LED Reading lights throughout
  • Smart solar charger controller MPPT 100/30
  • 2 X LED Lights Either Side of Tunnel Boot
  • Tv antenna
  • Wineguard Antenna Digital Boosted
  • 24” Inch Smart TV With Built In DVD Player
  • USB & USB-C throughout
